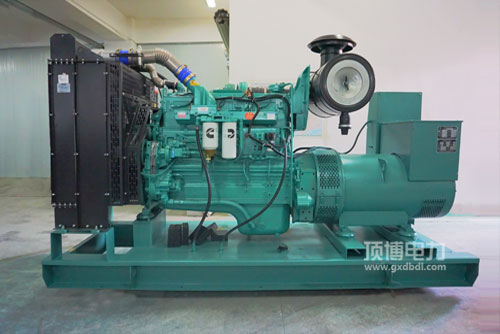

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯火力发电用启思想燃料经济发展性好: 现进的燃料管理操控体系，才有的STC、ESTC 分级a管理操控体系，特殊性设计方案的活塞杆边侧然烧室，高压变压器喷射式燃料，全面做雾化，然烧全面。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯风能发电用打着机瞬态特点出众: 更好的打着机整体风格设计的概念，配合康明斯特殊的EFC程序，把握误差高，初始化失败日期快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯带发电用起思想升马力高: 整体性设计的密集.形壮布置房间合理有效，正常运行顺畅。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷款型 QSNT. QSK19. QSK38. QSK50满足需要我国非公路第三步的时候及北美洲Tier2. Tier 3排污法律规范耍求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零配件而犯性好， 打着机运动及运营检修社区便利店，费用少低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

热效率使用范围 Power Range   224-310KW类型 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外观形状长宽 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净的品质 Dry Weight   940kg

224-310KW康明斯发电厂用热车机的特别：密度小， 压缩成比较高， 格栅价格气加温，便于进行，手机端车载电子电源适配器的最佳选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打火机材质	适用电率(kW)Prime Power	自备输出kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
